Die Casting Machines and Equipment

SKS utilizes only the most current and technologically advanced die casting, tooling, and CNC machines and equipment to produce high quality die cast parts. Contact SKS Die Casting for more information on our Die Casting capabilities or Request a Quote today.

Die Casting Engineering Services

  • Two (2) Solid Works stations
  • Two (2) Creo (Pro E) stations
  • One (1) AutoCAD station
  • One (1) Cast View flow simulator
  • One (1) H/P E size Plotter

Quality Assurance for All Die Cast Components

  • Two (2) DCC Brown & Sharpe One 755. The One 755 automatic (DCC) CMM Machine with PC-DMIS software is programmable and able to interact with models. These machines can check parts, fixtures, and molds with an accuracy within 2 tenths (.0002) of the required specifications. They can also perform reverse engineering.
  • 1- Manual Checkmaster with PC-DMIS 3.5 program. This machine produces a resolution in 3 axes of 0.0002 in.
  • Over 800 calibrated measuring gages and surface plates

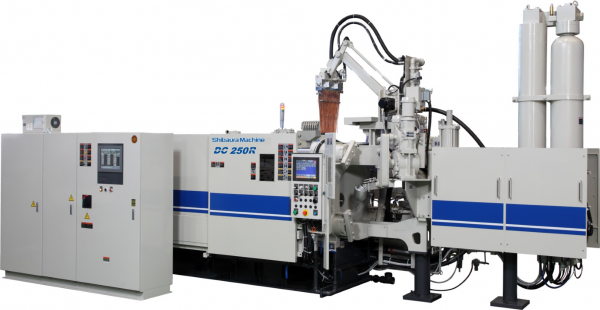

Shibaura Machine - DC250R-M/EM

Die Casting Machines

  • Shibaura 250 T - DC250R-M/EM Die Casting Machine
  • Prince 450 T-SF Cold Chamber Die Casting Machine
  • Lester Model HP-700 T-SF Cold Chamber Machine
  • Lester Model HP-800 T-SF Cold Chamber Machine
  • Prince 600 X-SF Cold Chamber Die Casting Machine
  • Prince 450 T Cold Chamber Die Casting Machine
  • HBM 1000 T Cold Chamber Die Casting Machine
  • Two (2) True-Trak 2020 - Monitor and Analysis System for above die casting machines
  • Two (2) E.J Callahan Electric Heat Treat Oven (234 cu. Ft. ;850F) (244 cu. Ft. ; 850F)
  • Three (3) 10-ton Die Trim Presses
  • Seven (7) Dynard Electric Melting Furnaces Model MS-260 (3- 350 lb/hr melt) (2-400 lb/hr melt) (1-480 lb/hr melt) (1-500 lb/hr melt)
  • Two (2) Overhead Bridge Crane (5 ton,7 ton)
  • Three (3) Rayteq Fleet Commander Interactive Demand Management System

Check out all the ways SKS can apply our die casting processes for your engineered die cast part.

Diecasting Tool Room

Machinist's Surface Grinder
Model MCS-1430-3A
14 in. x 30 in. capacity; fully automatic

Universal Three-Dimensional Profiling and Milling Machine
Deckel Model 21 with accessories

Bridgeport Mill Model 2J
Fully automatic N/C Control; X & Y axis and power 3 axis feed

Bridgeport Mill Model 2J
Includes power feed and N/C Control

Miller Sycrowave Model 300 AC/DC Gap Tungsten Arc Welding System

Jet Tool Room Lathe
15 in. x 36 in.

Diamond Model 800, "Hole Master" Radial Drill - 3 ft. arm

CNC Machines

Learn more about SKS's CNC Machine Centers.

  • Two (2) Haas 2015 VF-3 Vertical Mill: 40 in. x 20 in. x 24 in with HRT-210 fourth axis; 20-HP 24 tool side mount capacity spindle with 7,500 RPM; 1000 IPM
  • One (1) Haas HS-1 Horizontal Mill: 24 in. x 20 in. x 22 in. 20-HP spindle with 12,000 RPM; 710 IPM
  • One (1) Haas HS-1 Horizontal Mill: 24 in. x 20 in. x 22 in. 30-HP spindle with 12,000 RPM; 710 IPM
  • One (1) Haas HS-1 Horizontal Mill: 24 in. x 20 in. x 22 in with the fourth axis; 15-HP 24 tool capacity spindle with 12,000 RPM; 710 IPM
  • One (1) Haas HS-1 Horizontal Mill: 24 in. x 20 in. x 22 in with the fourth axis; 15-HP 24 tool capacity spindle with 12,000 RPM; 710 IPM through spindle coolant
  • Two (2) Haas VF-5 Vertical Mill: 50 in. x 26 in. x 24 in with HRT-210 fourth axis; 20-HP 32 tool capacity spindle with 7,500 RPM; 710 IPM
  • Two (2) Haas VF-3 Vertical Mill: 40 in. x 20 in. x 24 in with HRT-210 fourth axis; 15-HP 20 tool capacity spindle with 7,500 RPM; 710 IPM
  • One (1) Haas VF-E Vertical Mill: 20 in. x 16 in. x 20, 15-HP 20 tool capacity spindle with 7,500 RPM; 710 IPM
  • One (1) Haas VF-0 Vertical Mill: 20 in. x 16 in. x 20, 15-HP 20 tool capacity spindle with 7,500 RPM; 710 IPM
  • One (1) Haas VF-3 Vertical Mill: 40 in. x 20 in. x 24 in with HRT-210 fourth axis; 20-HP 20 tool capacity spindle with 7,500 RPM; 710 IPM
  • One (1) Haas VF-3 Vertical Mill Extended Travel: 40 in. x 26 in. x 24 in with HRT-210 fourth axis; 20-HP 24 tool side mount through spindle coolant, 10,000 RPM; 1000 IPM
  • One (1) Haas VF-5 Vertical Mill: 50 in. x 26 in. x 24 in with HRT-210 fourth axis; 20-HP 24 tool side mount 7,500 RPM; 710 IPM
  • Two (2) Acroloc M-15 High-Speed Vertical Machining Centers: 36 in x 20 in. x 28 in with fourth axis rotary head, 400 IPM; 12-HP, 15 tool capacity
  • One (1) Acroloc M-15 High-Speed Vertical Machining Center: 36 in x 20 in. x 28 in fourth axis rotary head, 400 IPM; 12-HP, 15 tool capacity
  • One (1) Hardinge "Conquest T-42": Fully automatic, N/C accuracy: 0.00050 in.
  • Two (2) Cobra 42: Fully automatic, N/C accuracy: 0.00050 in.
  • Four (4) Hardinge Automatic Chuckers: Model AHC with accessories
  • Three (3) Bridgeport Mills: Model 2J with travadials and accessories
  • Four (4) 15 in. Clauson Production Drill Presses: Heads on 60 in. production table
  • Six (6) No. 700 Rockwell Commander Multi Spindle Drill Heads
  • Three (3) Milman Multi-Spindle Automatic Lead Screw Tappers: 12-spindle and 24-spindle
  • Two (2) Walton GS6 Multi-Spindle Automatic Lead Screw Tappers: 6-spindle and 4-spindle

Die Cast Surface Finishing

  • One (1) Center Barrel Finishing Machine
  • One (1) Mangus Aqueous Cleaning Center
  • Three (3) Sweco Vibratory Finishing Machines
  • Three (3) Multi-Media blasting machines
  • Multiple belt sanders
For possible purposes of component cosmetics, protection from corrosion, or sealing surface porosity, check out the surface finishes SKS has available for die casting components.

Contact SKS for your Die Casting or CNC Machining Services

At SKS, we are proud to provide machining, finishing, mold development, and more for die cast parts. Please explore our die casting services, contact us to learn more about our machining services for die cast parts, or request a quote for further pricing details today.

Or call 510-523-2541 or email at sales@sksdiecasting.com to get your project started today.



SKS is your premier manufacturing source for die cast machining since 1945.
